Parylene Coater

SCS Labcoter 3

Overview

Parylene Coater

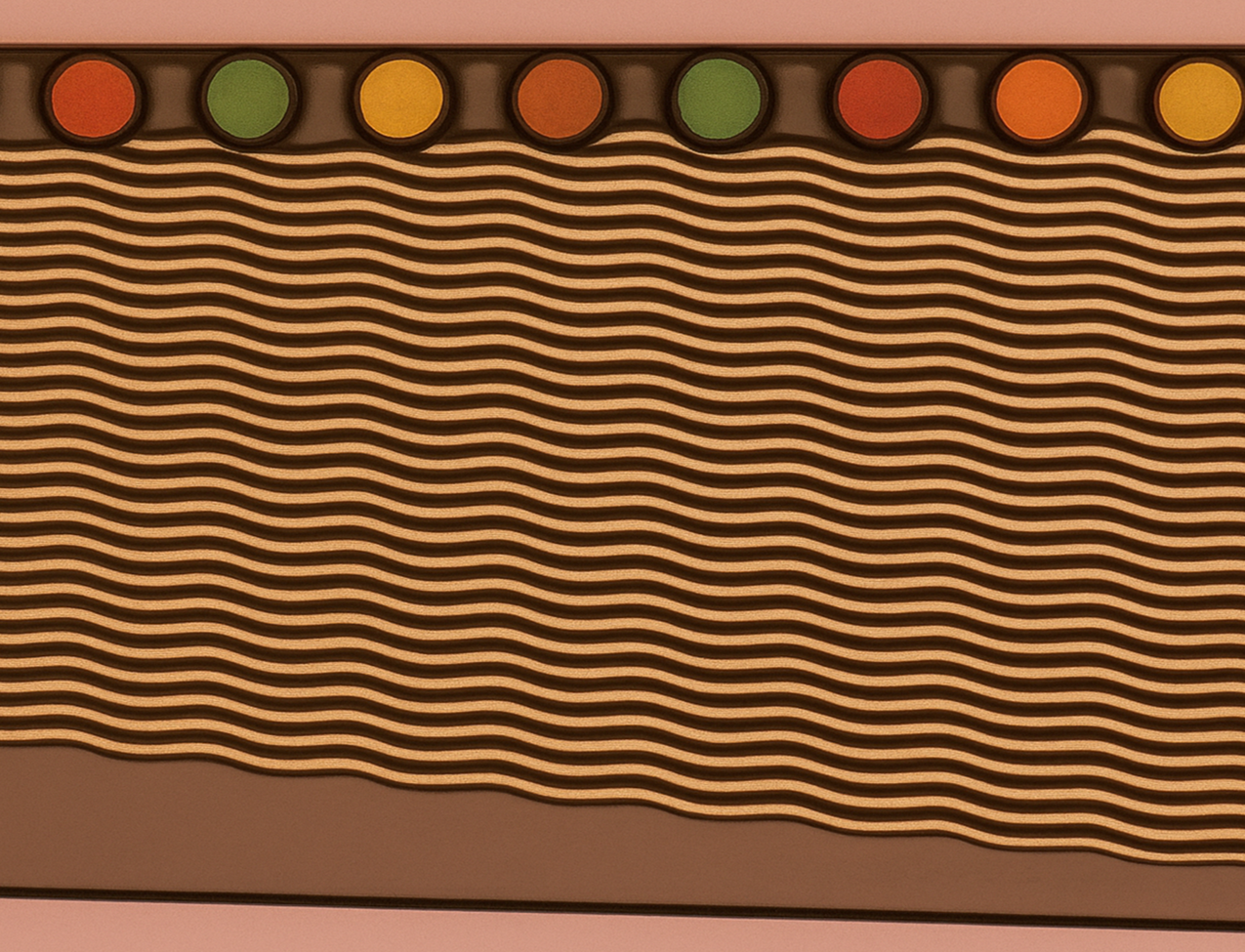

Metal film DC-sputtered with the AJA ATC-2200, patterned with the Suss MA-6 mask aligner, and insulated with Parylene-C using the SCS Labcoter 3. Fabricated in the VINSE cleanroom. (Daniel Woods, Daniel Gonzales group)

The Labcoter® 3 Parylene deposition system performs reliable and repeatable application of parylene biocompatible, conformal coatings. Parylenes can be applied to components such as circuit boards, sensors, wafers, medical devices, MEMS, and 3D-printed parts.

Capabilities

Parylene Coater
Rain Puddle Reflections

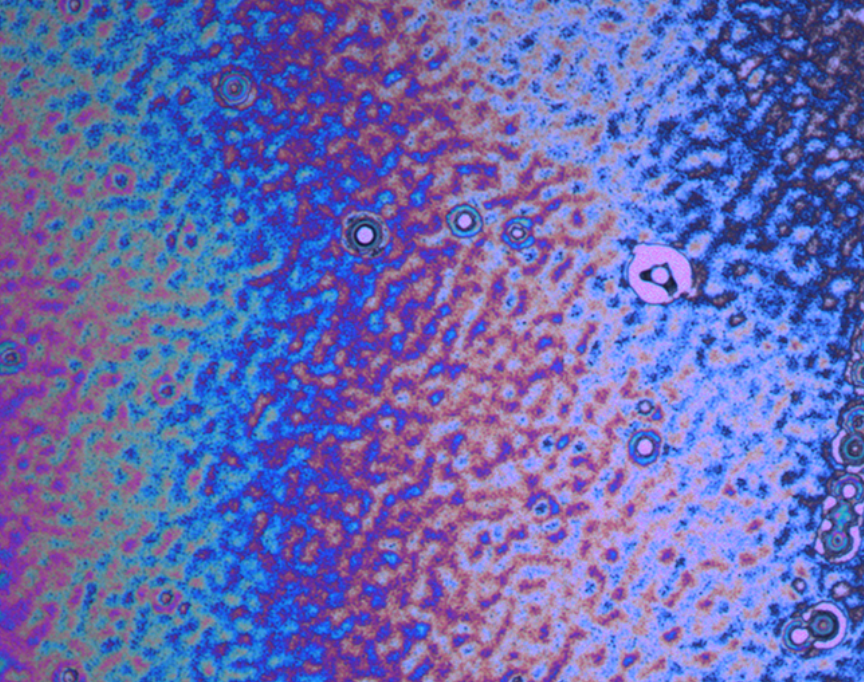

Etched parylene on silicon. Fabricated in the VINSE facilities using the Labcoter® 3 Parylene Deposition System and the Oxford PlasmaPro 100 Cobra & Imaged with the Olympus Optical Microscope. (Grace Adams, Biomedical Engineering, Daniel Gonzales group)
  • Parylene-C (Parylene-N upon request)
  • Mechanical chiller option
  • Removable lid option
