Physics Demo Number: 136

Approximate

Run Time: 10 min

More Mechanics Demos With Sensor Interface and Data Studio Software

Demo Description

Data may be taken for a cart moving on the Pasco Track with various angles of inclination.

Scientific Principles

Accelerated motion down an inclined plane.

Equipment

Fan cart and regular cart.

Pasco Science Workshop 750 Interface

Equipment Location

[E-1-2]

[E-1-2]

Instructions

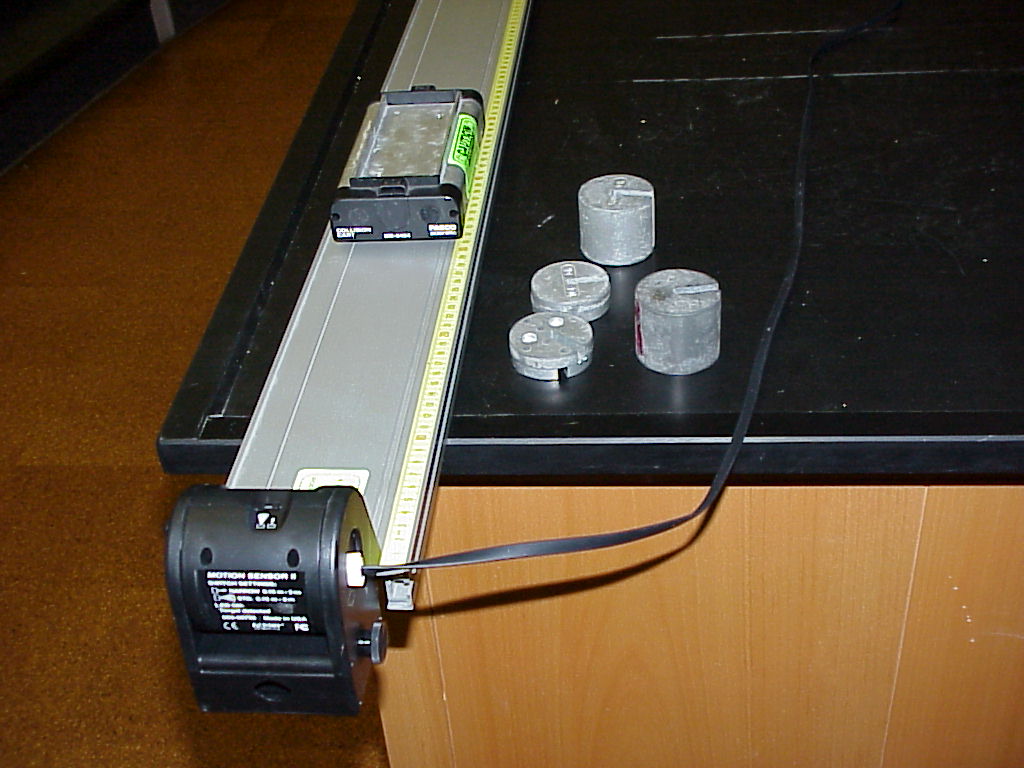

The first photo depicts the setup of 2M Pasco track with cart and motion sensor (hooked to Science Workshop 750 interface ). The slotted masses serve to give several distinct inclination angles to the track. The next photo

gives a closer look at the sensor end and track end elevators.

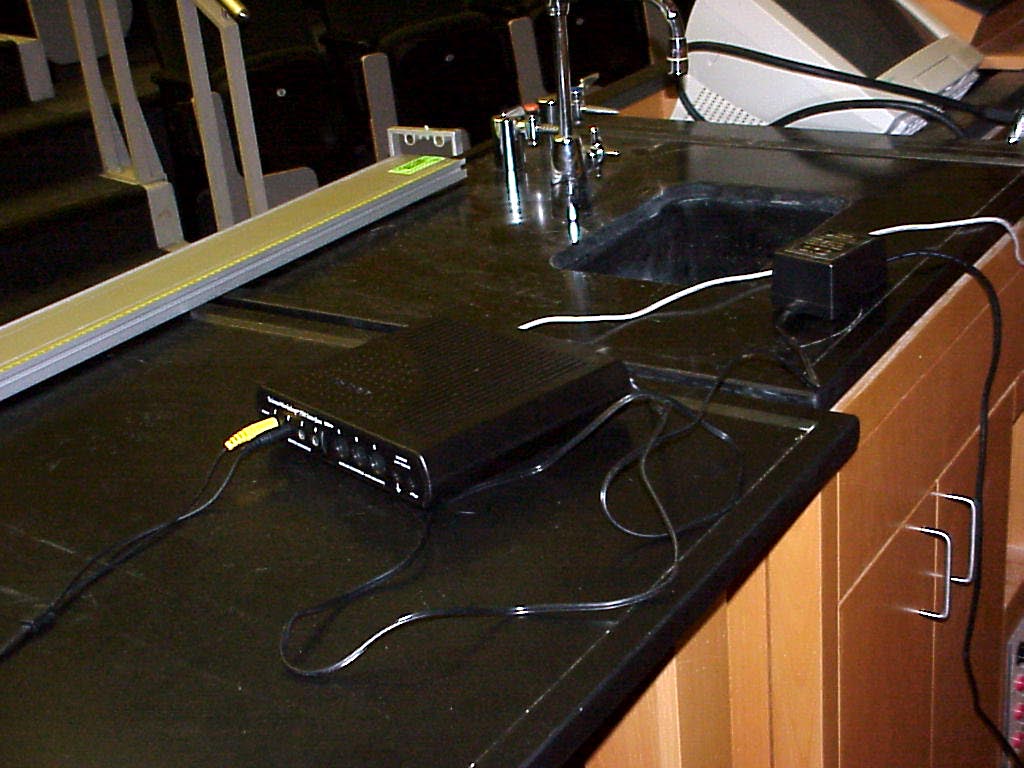

The third photo

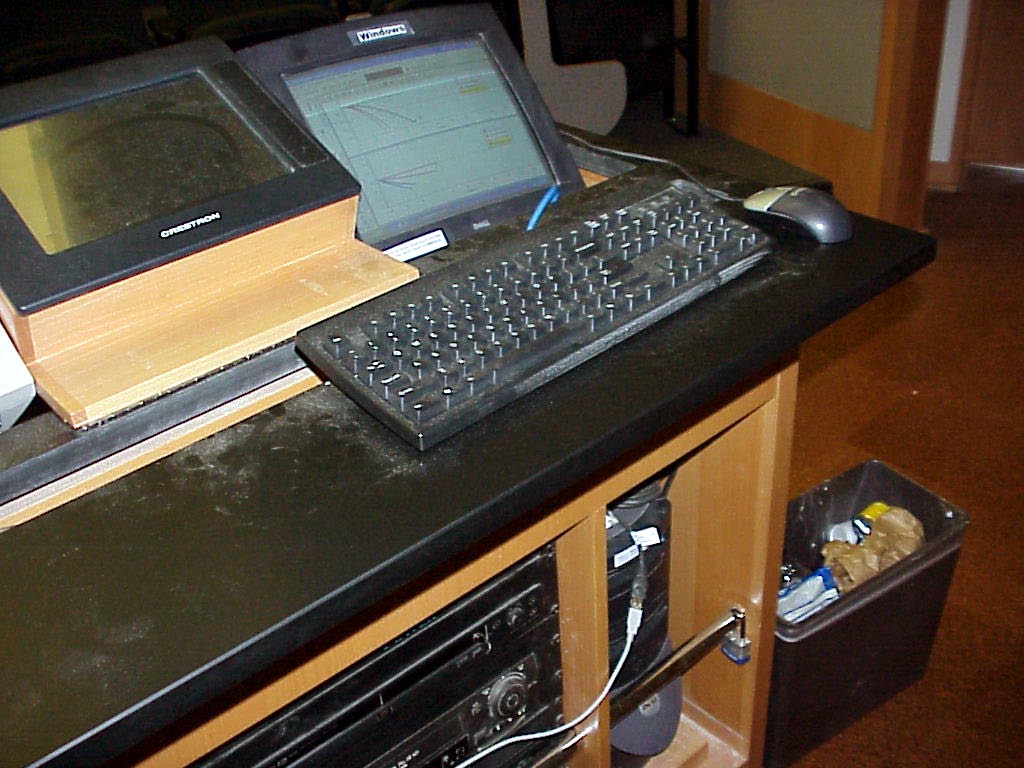

shows the USB Interface (with its power supply attached on the rear and the two plugs from the sensor plugged into the front) connected by means of the light colored output cable on the rear running to a USB port on the lecture hall PC as seen in the next photo.

One then runs the Data Studio software on the PC and outputs the PC monitor to the room Media Interface, as depicted in the last photo for the case of single projector mode of operation.
